Industrial Fanless Mini PC Intel i7-8550U i5-8250U i3 DDR4 Rugged Computer 2*Intel Lans 6*COM 8*USB GPIO LPT HDMI VGA 3G/4G WiFi
 |
| Industrial Fanless Mini PC Intel i7-8550U i5-8250U i3 DDR4 Rugged Computer 2*Intel Lans 6*COM 8*USB GPIO LPT HDMI VGA 3G/4G WiFi |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -31% |
| Product id | 4000542515717 |
| Vendor | Topton PC Store |
| Category | - Uncategories |
Description :
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for...)
- 2xIntel i211 Gigabit RJ45 LAN and 6xCOM 232(2xCOM can change to RS422/485 from BIOS).
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.
- GPIO, LPT, 6COM, HDMI, VGA, USB, MIC, SPK rich ports.
- Low consumption TDP only 15W and can be mounted on the wall.
- One embedded SIM card slot for 4G Module.
- Support Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
-10/+60Centigrade (32°F~140°F)
-20/+80 Centigrade (-68°F~176°F)
1 x 12V DC In
1 x GPIO
1 x LPT
1 x MIC, 1 x SPK
1 x Power On/Off Switch
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
1 x VGA, 1 x HDMI

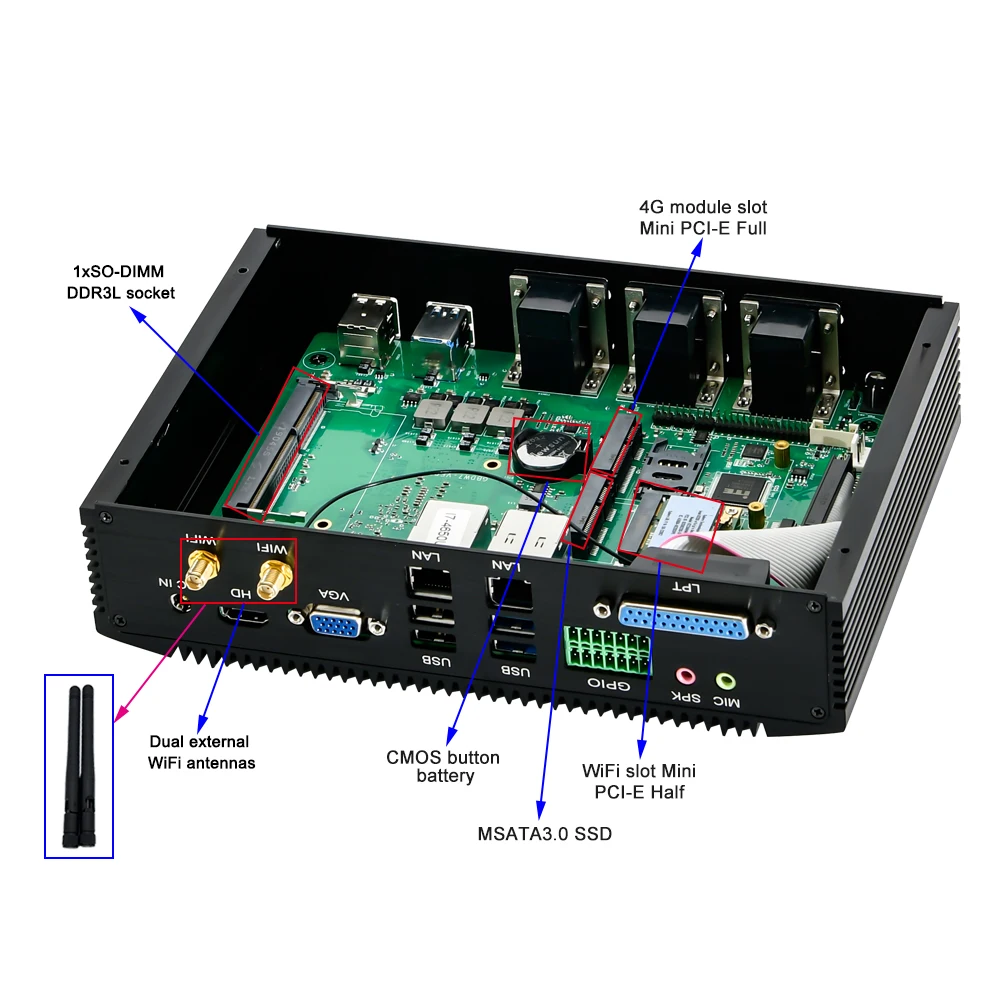

1 x embedded SIM card slot onboard
1 x mini PCIE-full port for 4G module
1 x mini PCIE-half port for Wi-Fi module
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1 x SO-DIMM DDR4 Slot, Support 4GB/8GB
1. 3G module add extra 50$, 4G module add extra extra 70$. 2. 500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 75$, 2TB 2.5'' HDD add extra 100$. 3. USB Infrared remote (can turn power off but not on, and control media center like kodi) add extra cost US$14. 4. Bluetooth4.0 USB Dongle add extra cost US$5. 5. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45. 6. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20. 7. Genuine windows license add extra cost 35$.
1. Skylake 14nm CPU Intel Core i3 6006U 2 cores 4 threads 2.0Ghz 3M cache TDP 15W Intel HD 520.
10%~90% (non-condensing)
10%~90% (non-condensing)
10/100/1000Mbps BaseT LAN
15W
190mm x 150 mm customized size
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
2 x RJ45 Giga LAN
2 x inner RF cables and 2 x external antennas
2. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5Ghz Max to 3.0Ghz 3M cache TDP 15W Intel HD 620.

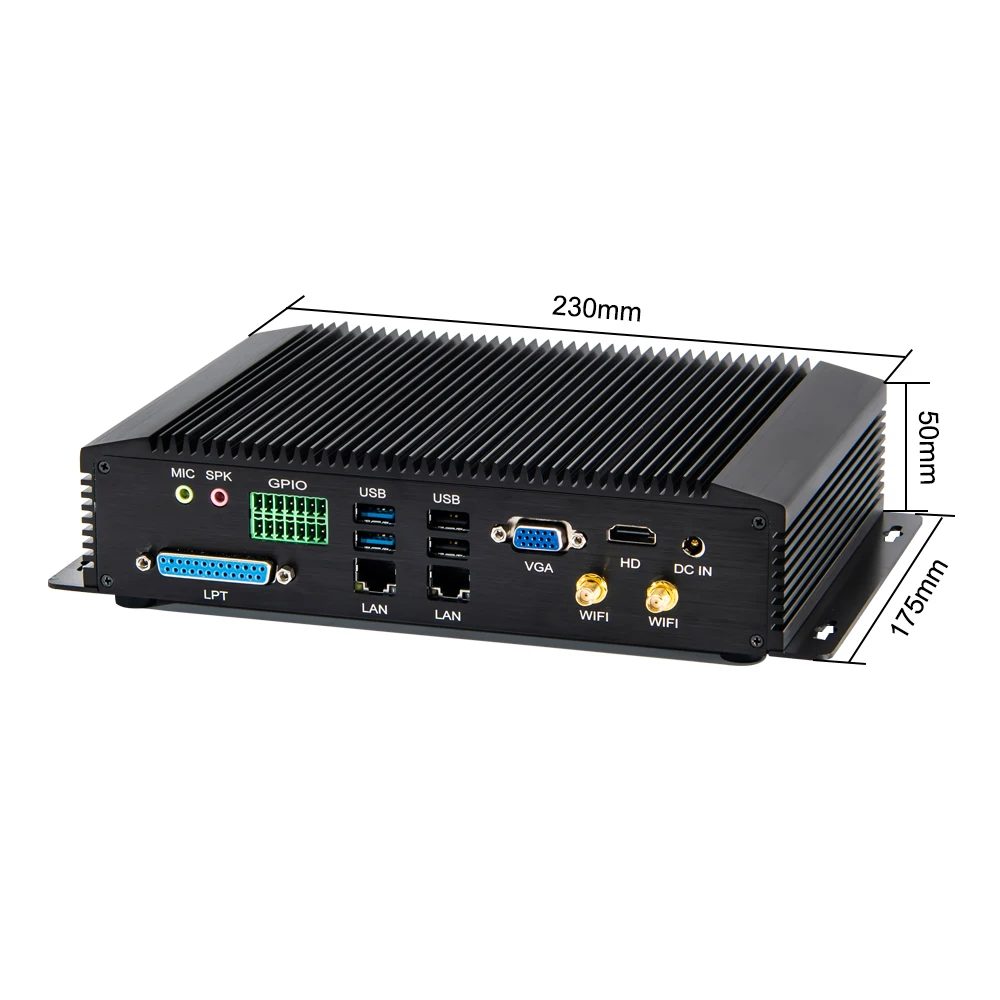

230*175*50mm
3. Kaby Lake R 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6Ghz Max to 3.4Ghz 6M cache TDP 15W Intel UHD 620.
4 Mounting holes on case
4 x USB2.0, 4 x USB3.0
4. Kaby Lake R 14nm CPU Intel Core i7 8550U 4 cores 8 threads 1.8Ghz Max to 4.0Ghz 8M cache TDP 15W Intel UHD 620.
5%~95% (non-condensing)

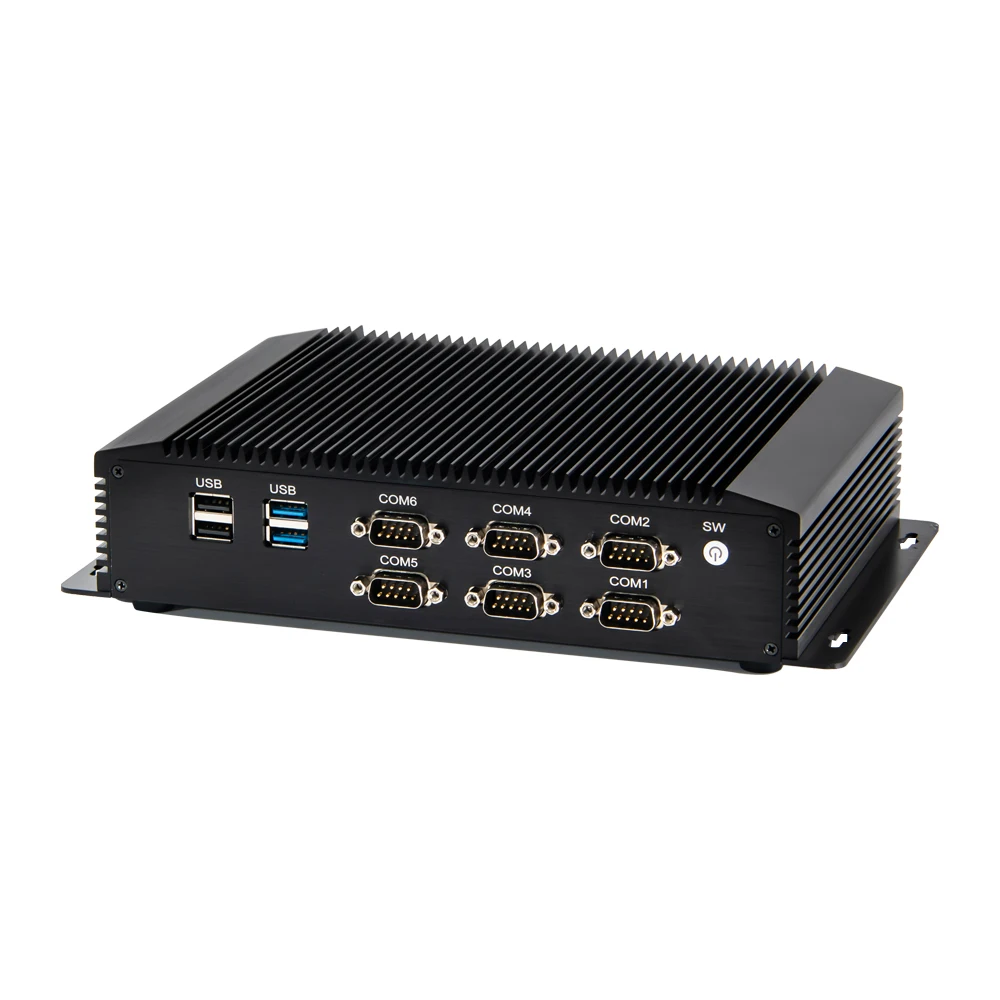

6 COM RS232, COM1 COM2 can change to RS422/485 from BIOS
ALC662 sound chip, 6-channel
American Megatrends Inc. 5.6.5
Antenna
Audio
Audio
BOIS
Basic Information:
Black color aluminum alloy
COM
CPU
Chipset
Cooling Mode
DC +12V~+19V, recommend 12V/5A
DC100-240V AC/50-60Hz
DDR4 2133/2400
DO NOT buy "no ram no storage" bundle if you are not Computer Expert, PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive.
Display
Fanless
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for OEM system.
Functions
GET BIG COUPON FROM: https://www.aliexpress.com/store/sale-items/5122038.html
GPIO
Input
Input/output port
Intel Core i3-6006U/i5-7200U/i5-8250U/i7-8550U
Intel HD Graphics
Intel Lynx Point-LP HD Audio Controller
Intel SOC
LAN
LPT
MSATA
Memory
Module
Motherboard
Mounting
Net 1.25kg, Gross 2.0kg
Network
OS
Onboard Intel i211 Gigabit Network Connection
Operating Humidity
Operating Temperature
Optional
Others
Output
PXE
Package Content
Power
Power and Working Environment
Processor parameter for referance only:
Product Dimension & Details
Relative Humidity
SATA
Shell
Size
Standard
Storage
Storage Humidity
Storage Temperature
Switch
TPD
USB
Video
Watch dog, Auto power on, RTC, Wake-on-LAN
Weight
Wi-Fi
WiFi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
Windows 7/Windows 8/Windows 10/Linux
YES
All bundles on sale include WiFi with antennas.
Buy with confidence! 3 Years long warranty for fanless system!
