Description :
- 1*mSATA SSD+1*2.5'' SSD/HDD installation supported.
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.

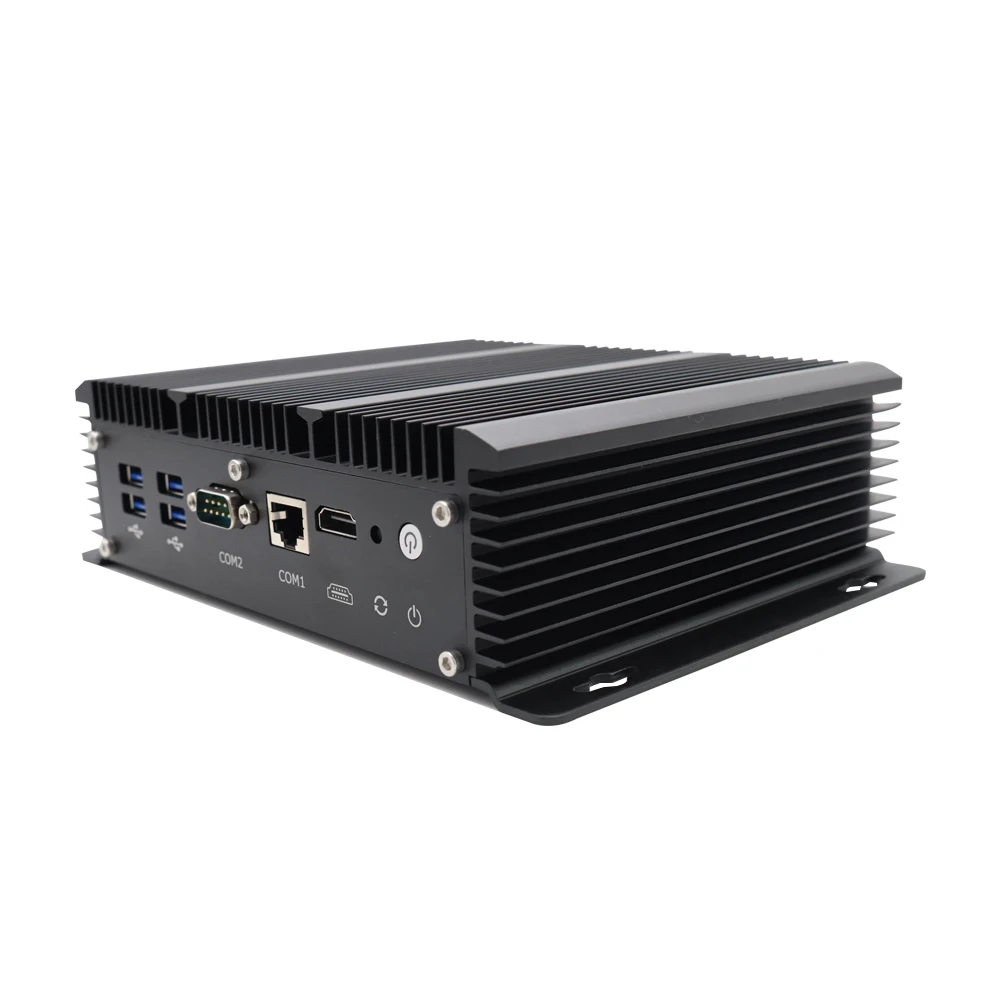

- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design with high quality, slim design 209*150*57MM.
- One embedded SIM card slot onboard, 3G/4G/WiFi optional.
- -6*Intel i201/i211 Gigabit RJ45 LANs and 2*RS232 COM ports, support Windows, Linux and pfSense OS.
- Low consumption save much energy and eco-friendly.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
-20/+60 Centigrade
-30/+70 Centigrade
1 x 12V DC In

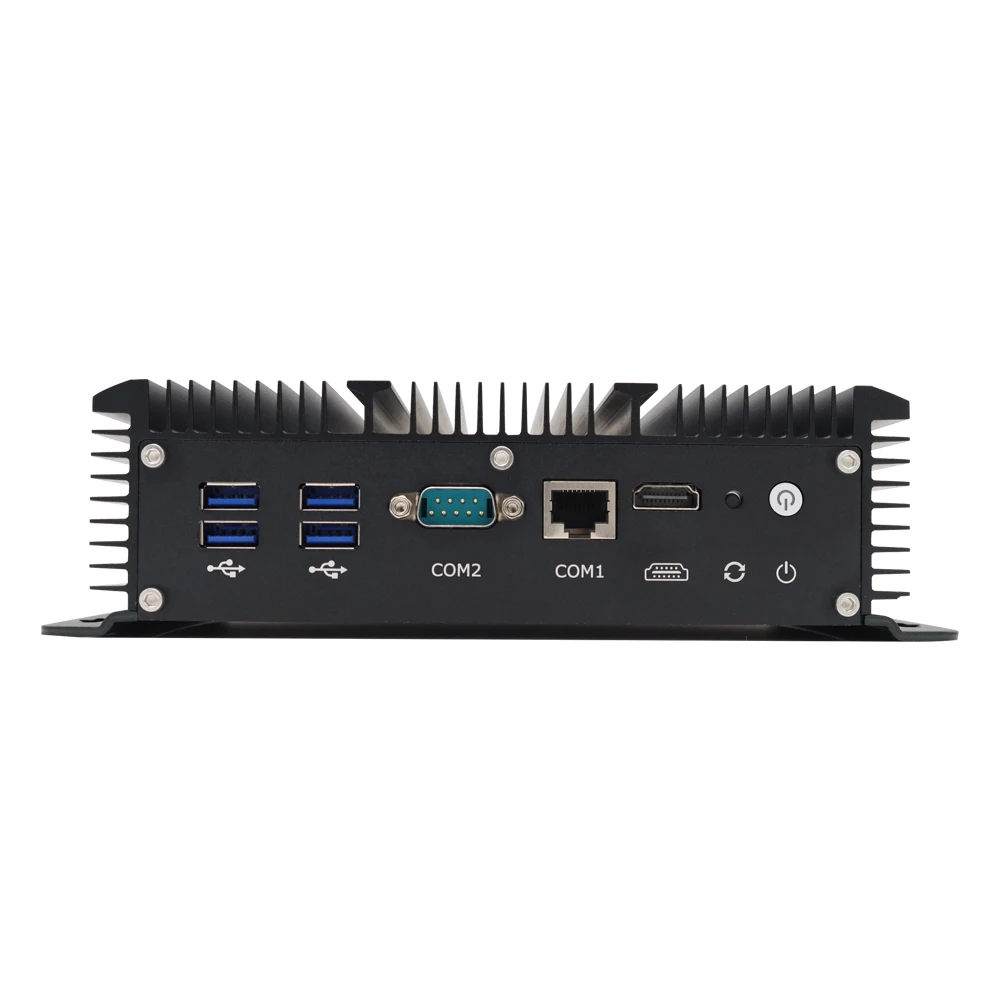

1 x DB9 RS232 COM, 1 x RJ45 RS232 COM
1 x HDMI
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1 x MIC, 1 x SPK
1 x Power LED, 1 x HDD LED
1 x Power On/Off Switch
1 x Reset button
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
1 x embedded SIM card slot onboard

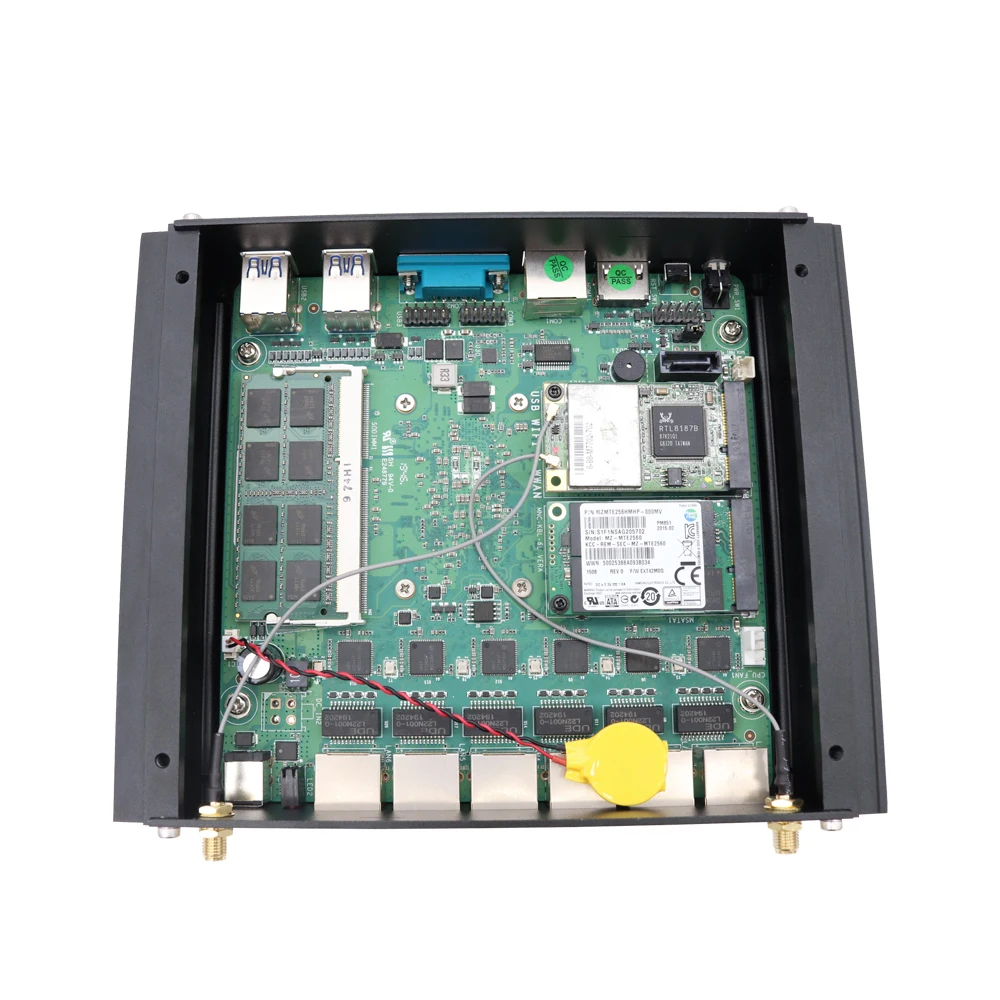

1 x SO-DIMM DDR3L Slot
1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol)
1. 4th Gen Haswell 22nm Intel Celeron 2957U 2 cores 2 threads 1.4GHz 2MB cache TDP 15W Intel® HD Graphics. (DO NOT SUPPORT AES-NI)
1. WiFi(antennas) add extra 7$, 3G module add extra 50$, 4G module add extra extra 70$.
10%~90%@30 Centigrade(non-condensing)
10/100Mbps/1000Mbps BaseT LAN
150 x 150mm customized size
15W/28W
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xHDMI cable

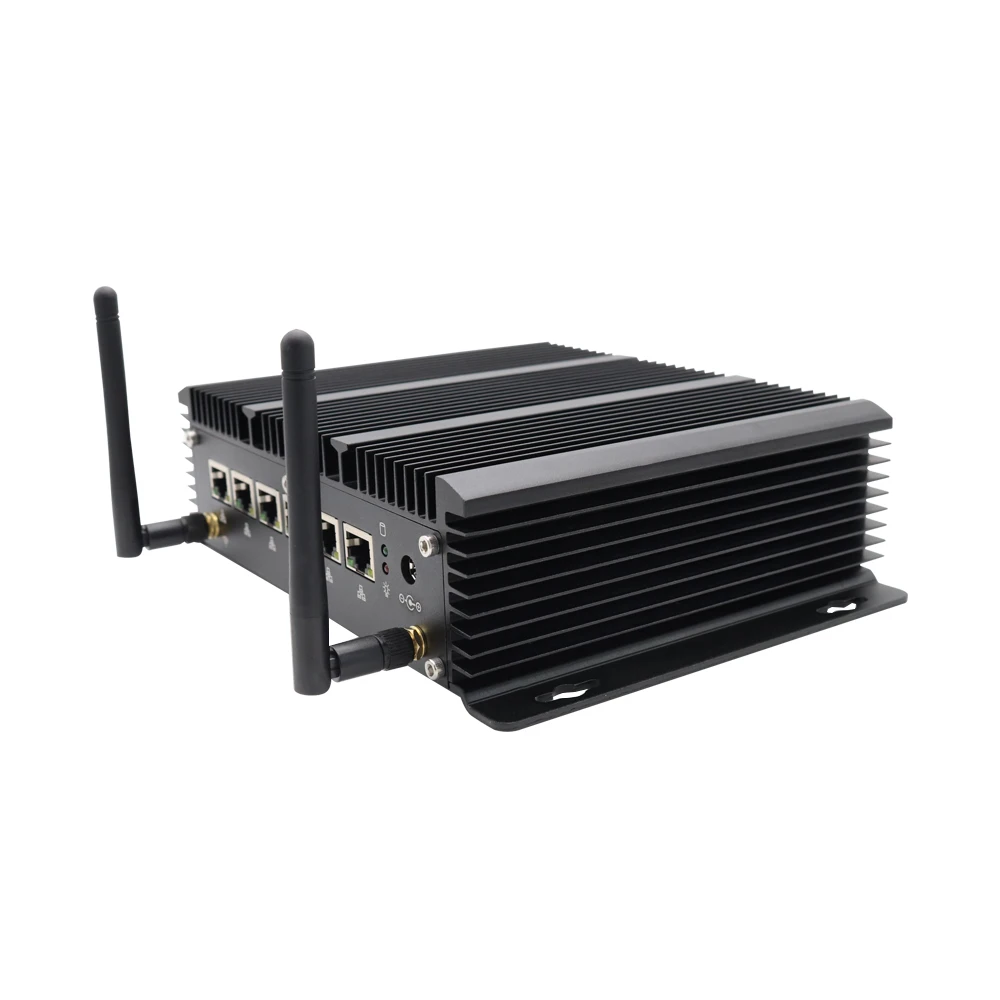

2 x inner RF cables and 2 x external antennas
2. 7th Gen Kaby Lake 14nm Intel Celeron 3865U 2 cores 2 threads 1.8GHz 2MB cache TDP 15W Intel® HD Graphics 610.(SUPPORT AES-NI)
209*150*57mm
3. 7th Gen Kaby Lake 14nm Intel Core i3 7167U 2 cores 4 threads 2.8GHz 3MB cache TDP 28W Intel® Iris® Plus Graphics 650. (SUPPORT AES-NI)
4 mounting holes on case
4 x USB3.0
4. 7th Gen Kaby Lake 14nm Intel Core i5 7267U 2 cores 4 threads 3.1GHz up to 3.5GHz 4MB cache TDP 28W Intel® Iris® Graphics 650.(SUPPORT AES-NI)

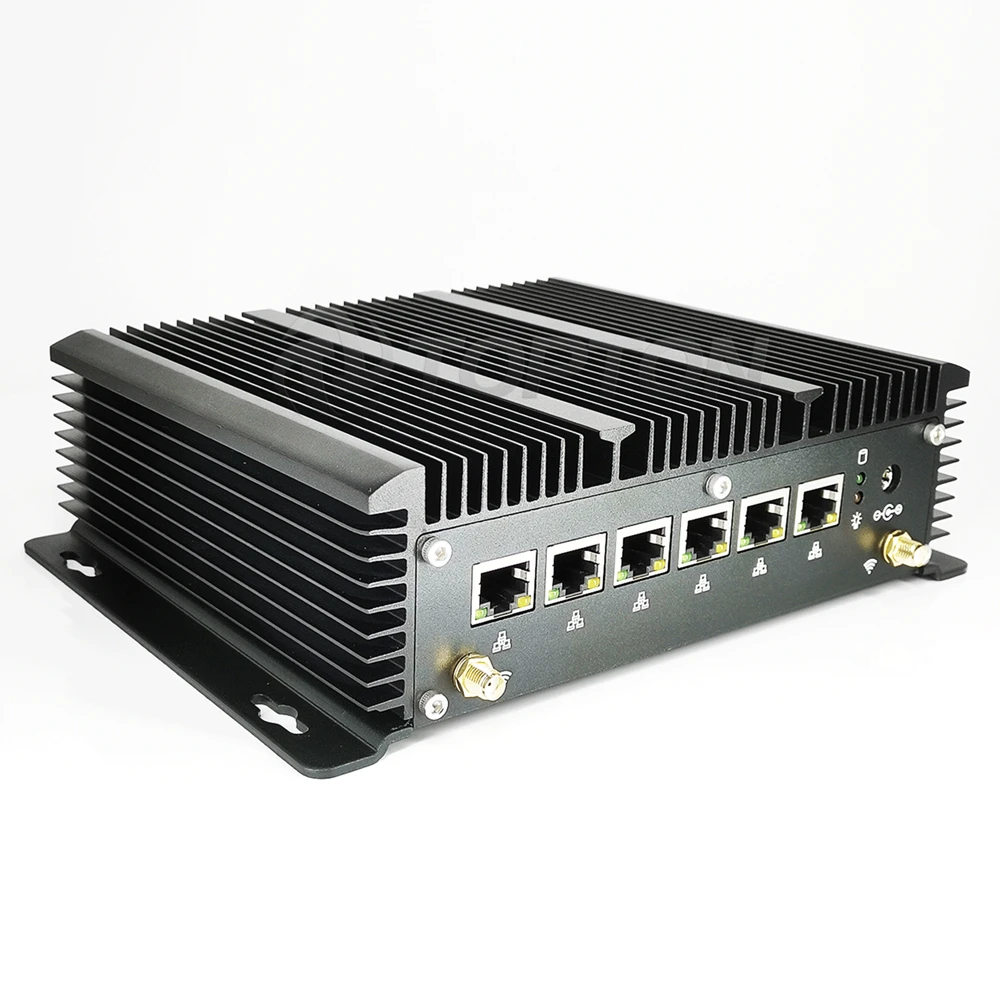

6 x RJ45 Giga LAN
All bundles on sale DO NOT include WiFi(antennas), 3G/4G module, WiFi(antennas) cost US $7, 3G module cost US $50, 4G module cost US $70. If you need, pay at this link.
American Megatrends Inc.5.12
Antenna
Audio
Audio
BOIS
Barebone system no ram no storage, please use DDR3L-1600 1.35V Non-ECC SO-DIMM Ram. Do not support DDR3 1.5V Ram.
Basic Information:
Black Case in stock always:
Black/Silver color aluminum alloy(any customized color for bulk order)
COM
CPU
Chipset
Cooling Mode
DC +12V~+19V, recommend 12V/5A
DC100-240V AC/50-60Hz
DDR3L-1600, DDR3L-1333, LPDDR3-1600, LPDDR3-1333
DO NOT buy "no ram no storage" bundle if you are not Computer Expert, PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive.
Display
Fanless
Free Operating System: Default installed Pfsene. Other systems we can install free are like Windows, Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial system.
Functions
Input
Input/output port
Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Intel Sunrise Point-LP
Intel(R) i210/i211 Gigabit Network Connection
Intel® HD/Iris Graphics
LAN
LED
MSATA
Memory
Module
Motherboard
Mounting
Net 1.35kg, Gross 2.5kg
Network
OS
Onboard Intel 4th/5th/6th/7th/8th Gen Mobile CPU for optional
Operating Temperature
Optional
Others
Output
PXE
Package Content
Power
Power and Working Environment
Processor parameter for referance:
Product Dimension & Details
Relative Humidity
SATA
SIM
Shell
Silver Case(OEM for quantity order):
Size
Standard
Storage
Storage Temperature
Support 2GB/4GB/8GB
Switch
TDP
Topton 6*Lans Industrial Mini PC Intel Core i5 7267U i3 7167U 3865U Firewall PC Pfsense Router 4*USB3.0 2*RS232 HDMI 4G/3G WiFi
USB
Video
Watchdog, AWAL, RTC, WOL
Weight
Wi-Fi
Wi-Fi antennas, 1xUser Manual, 1xLong Screws Bag
Windows® 7/8/10, Pfsense, WES 7/10, LINUX
YES
You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
